Outdoor windproof blinds

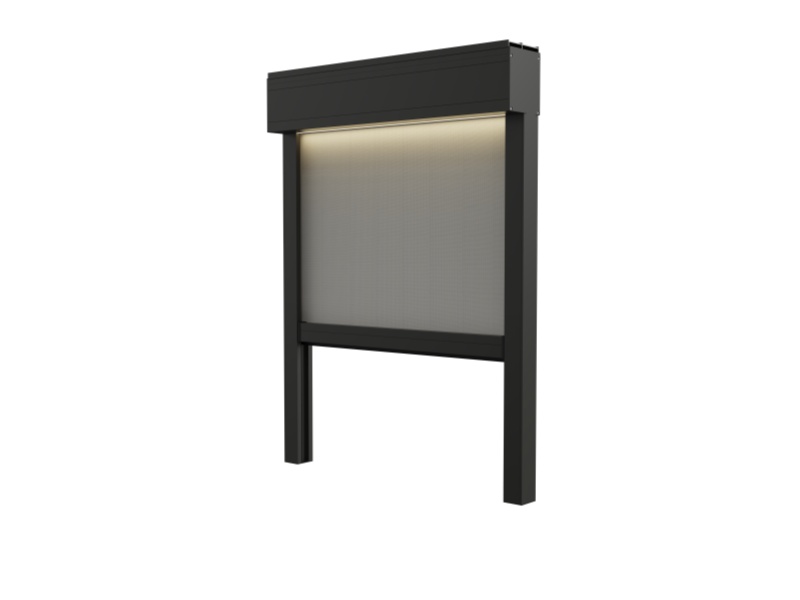

Double Splicable Motorized Windproof Blind

Double Splicable Motorized Windproof Blind

Cassette：200mm*135mm
Tube：70mm / 85mm

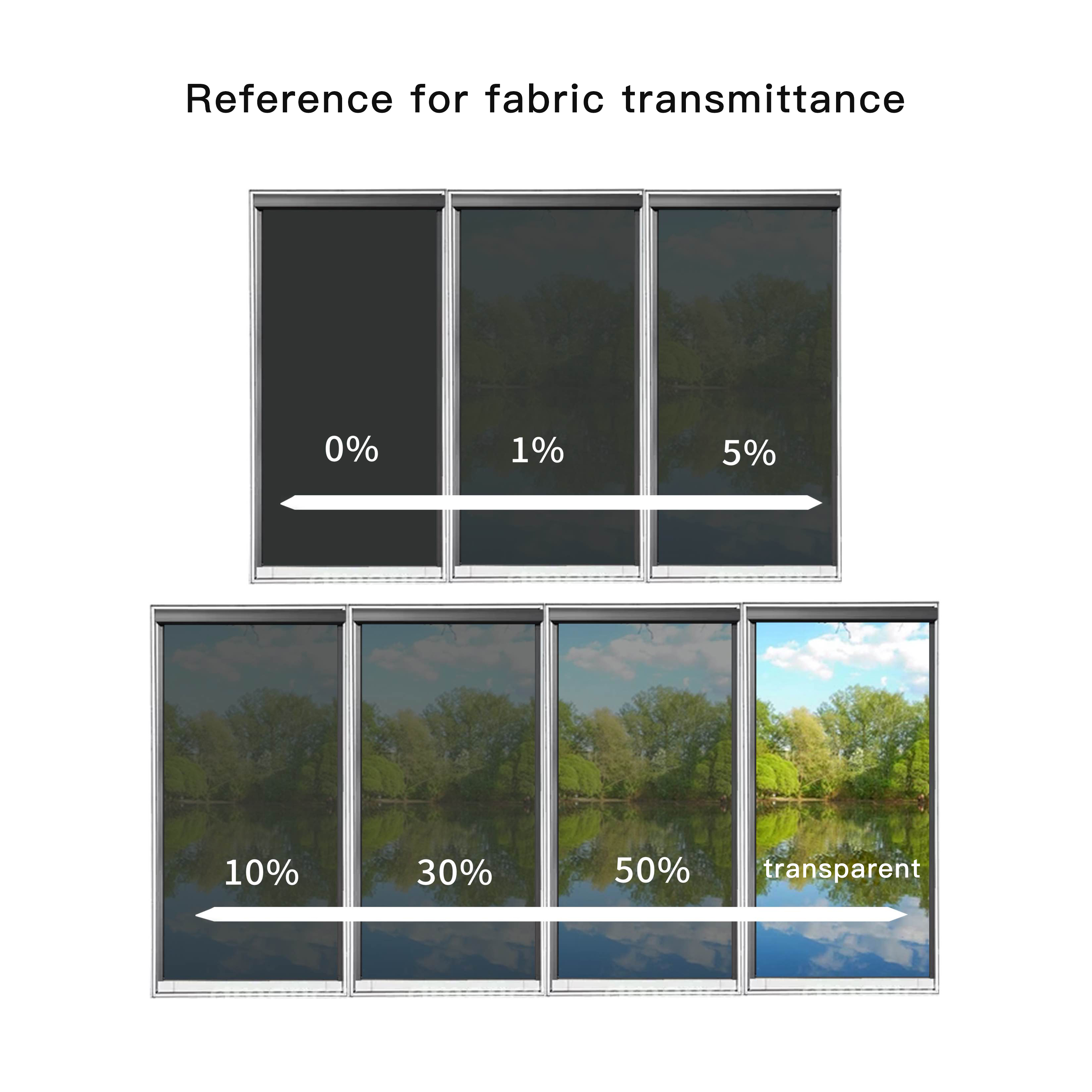

Fabric Openness Factor: 1% / 5% / 10%/ 20% / 30% / 40%
Max size: 30m*7m
Product description: The V8 Ultra Double Layer Series spans up to 15 meters outdoors and 30 meters indoors—both reaching 7 meters in height—with zero visible seams and no fabric wrinkling.

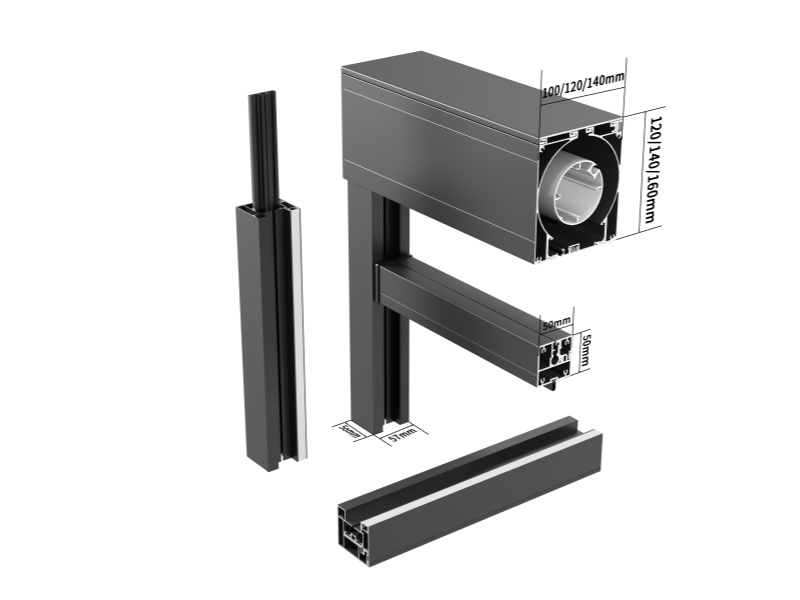

Cassette size : 200mm * 135mm
Tube Size : 70mm ，85mm
Side Rail : 60mm*102mm
Bottom Rail : 65mm*50mm

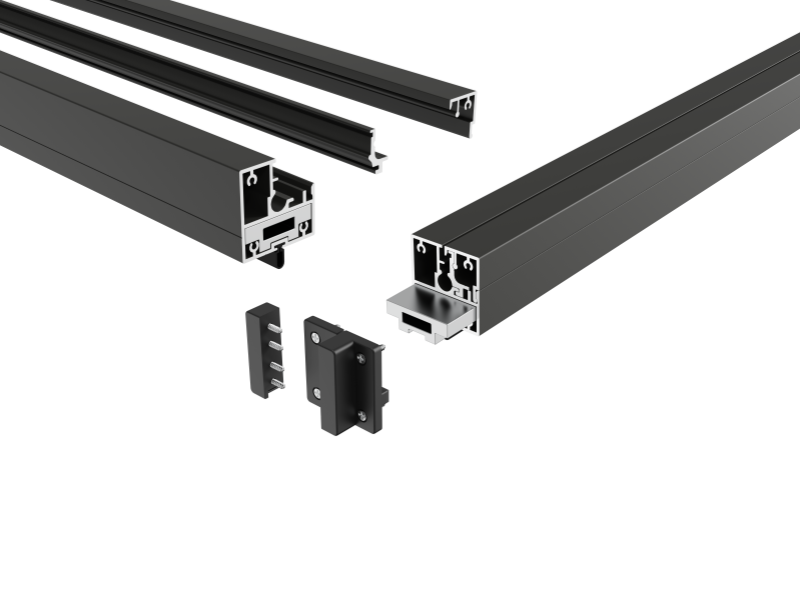

Splicing allows for extended dimensions up to 30m (W) × 7m (H).

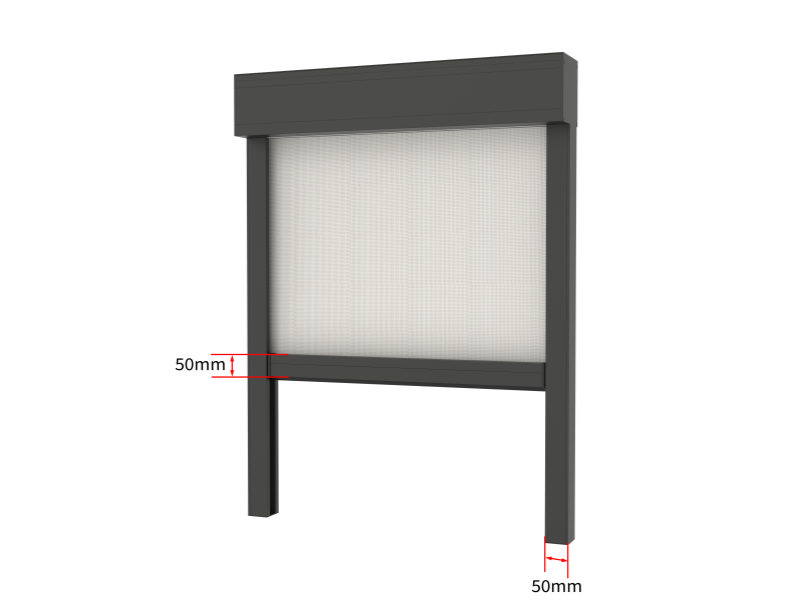

Dimensions:
Width: 2000mm minimum - 30000mm maximum
Maximum Drop: 7000mm

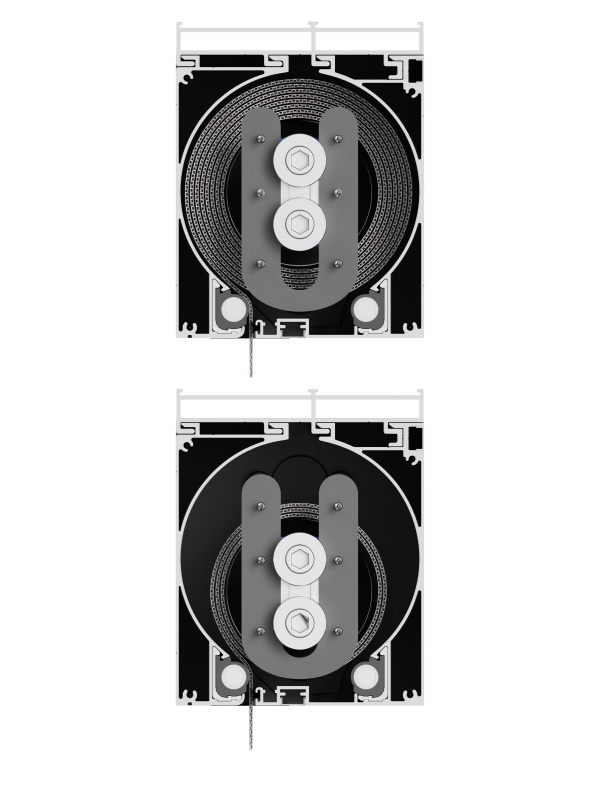

Note: Different cassette and tube configurations are required depending on fabric thickness, which means maximum achievable dimensions vary accordingly.
