Aluminum Flipped pergola

HF-228 Retractable Louver Pergola

Beam: 250mm*50mm
Post: 200mm*200mm
Blade: 228mm*40mm
Max size: 4m*7m*3m
Product description: The blades can be fully folded and retracted to one end, opening up to 75% clear sky view when retracted — so you can enjoy the open air and panoramic views whenever you want.

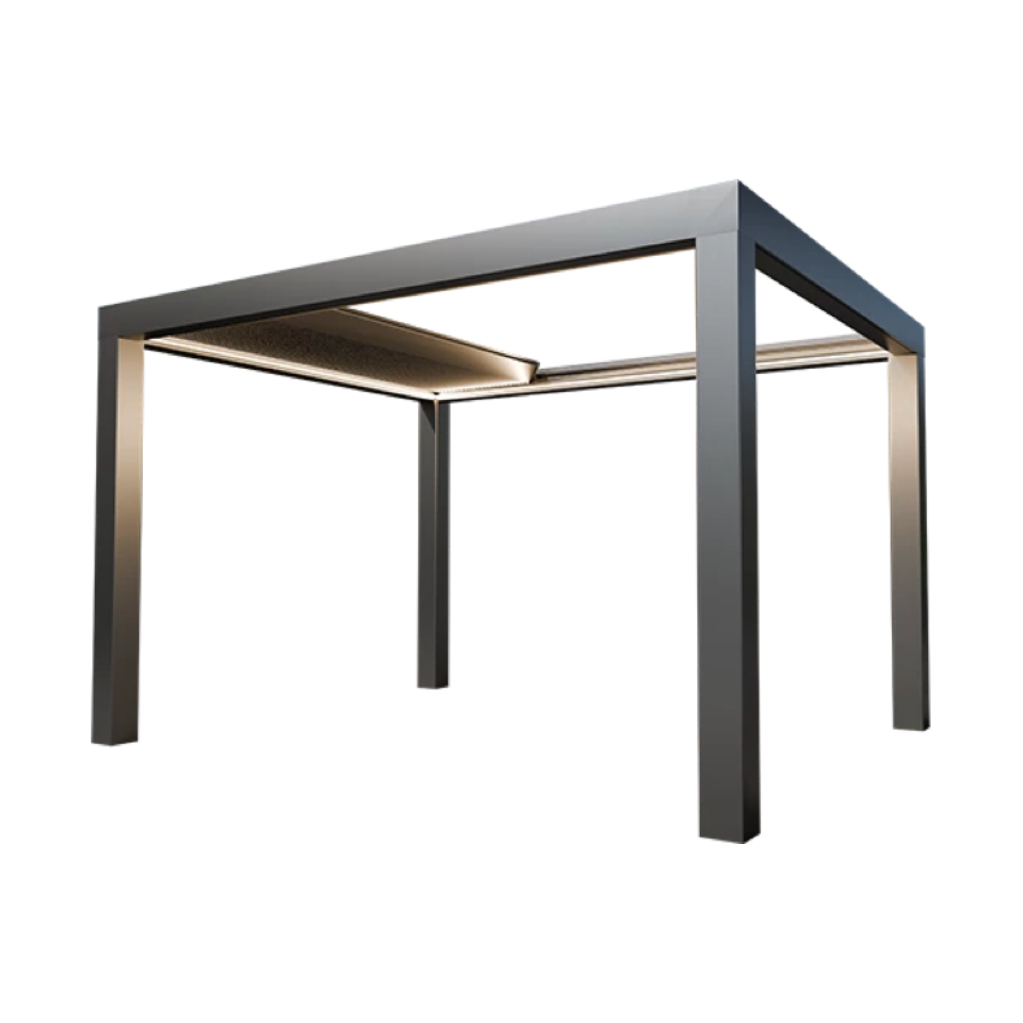

HF-228 Retractable Louver Pergola
The retractable louvered pergola is a fully aluminum architectural structure designed for flexible outdoor living. The blades can be fully folded and retracted to one end, opening up to 75% clear sky view when retracted — so you can enjoy the open air and panoramic views whenever you want. When closed, the louvers provide complete shade and effectively block rainwater.

Max size: 4m*7m*3m
Maximum width in blade span direction 4m
Support customized sizes
Aluminum frame colors: (dark gray, white color)

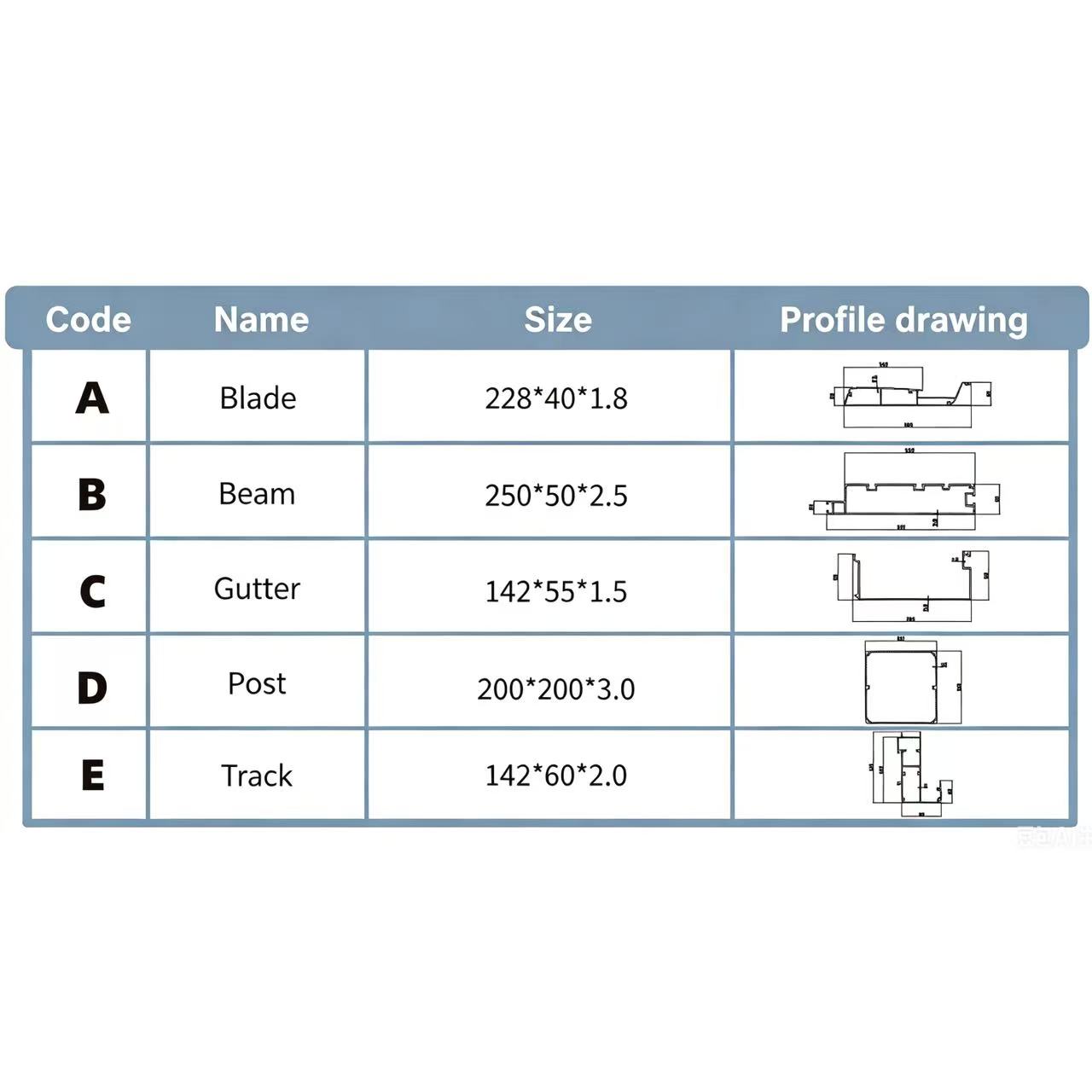

Beam:250mm*50mm/thickness 2.5mm
Blade: 228mm*40mm/thickness 1.8mm
Standard height is 2.8 meters, with 4 standard 200*200mm post /thickness 3.0mm
Gutter:142mm*55mm/thickness 1.5mm，with COB light strip.
Track:142mm*80mm/thickness 2.0mm
Include 1 motor + 1 remote control + power supply + 1 controller + 1 plug + 2-meter power cord

Support Tuya smart wifi
Support 24V DC safety Voltage motor
