Aluminum Flipped pergola

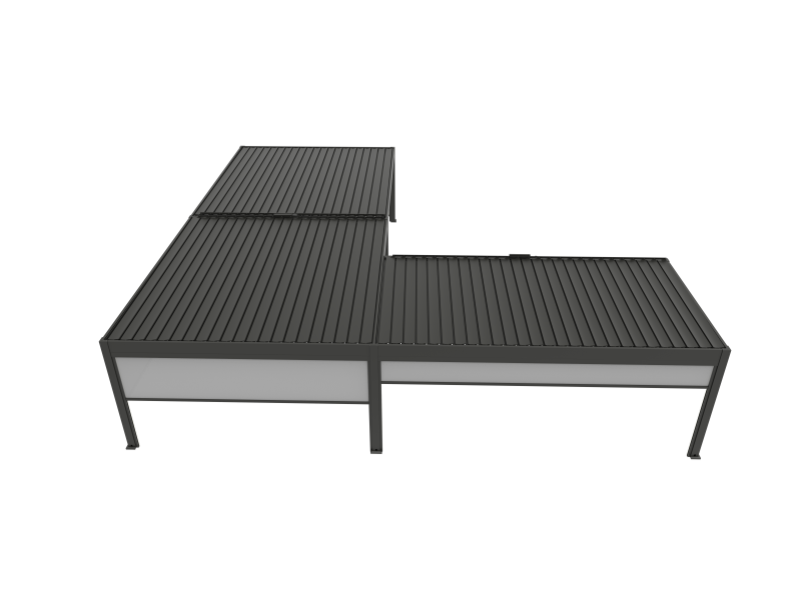

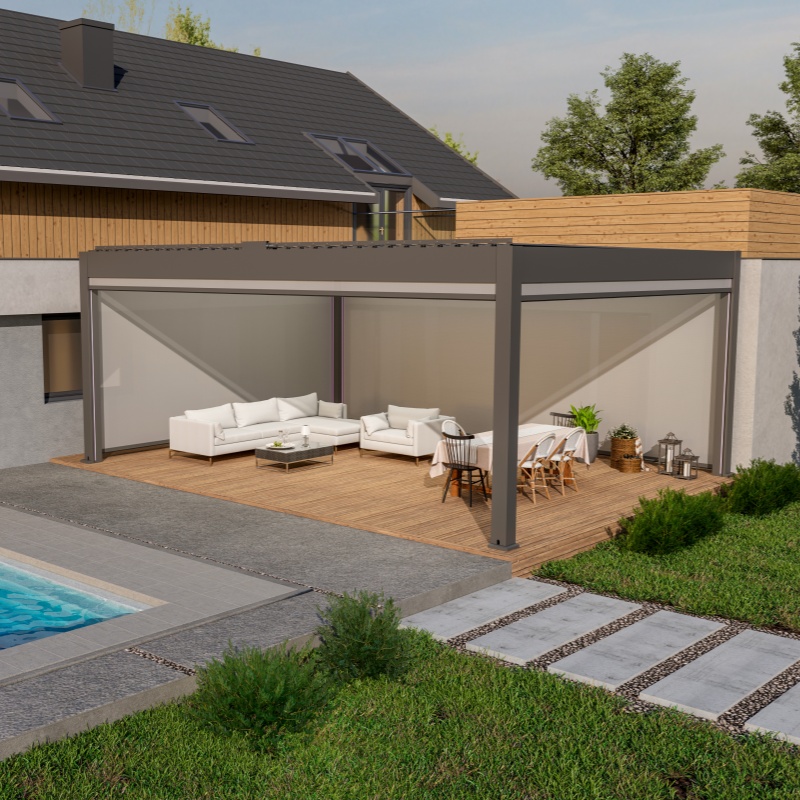

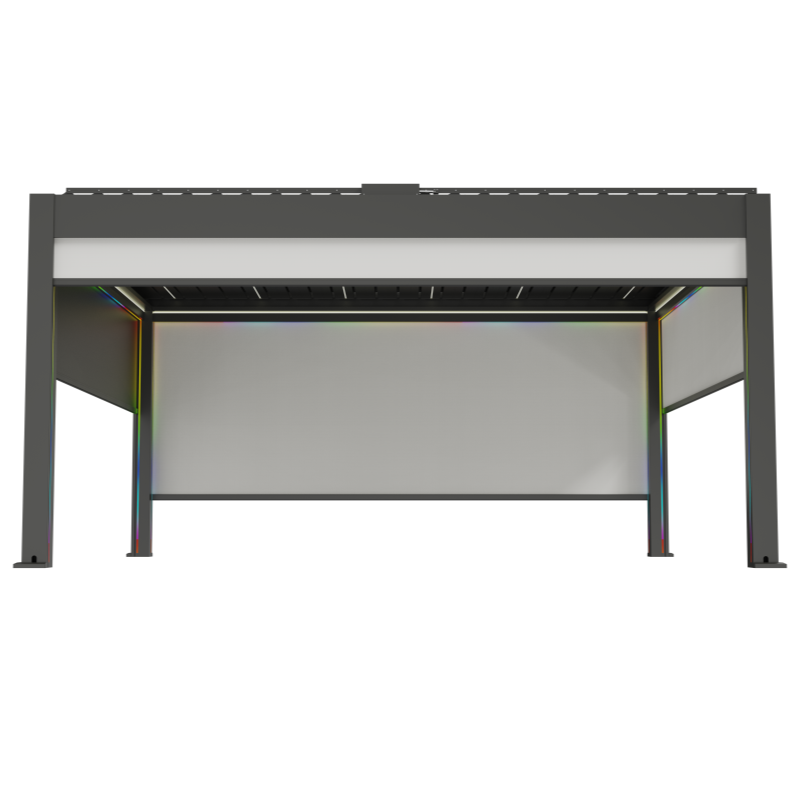

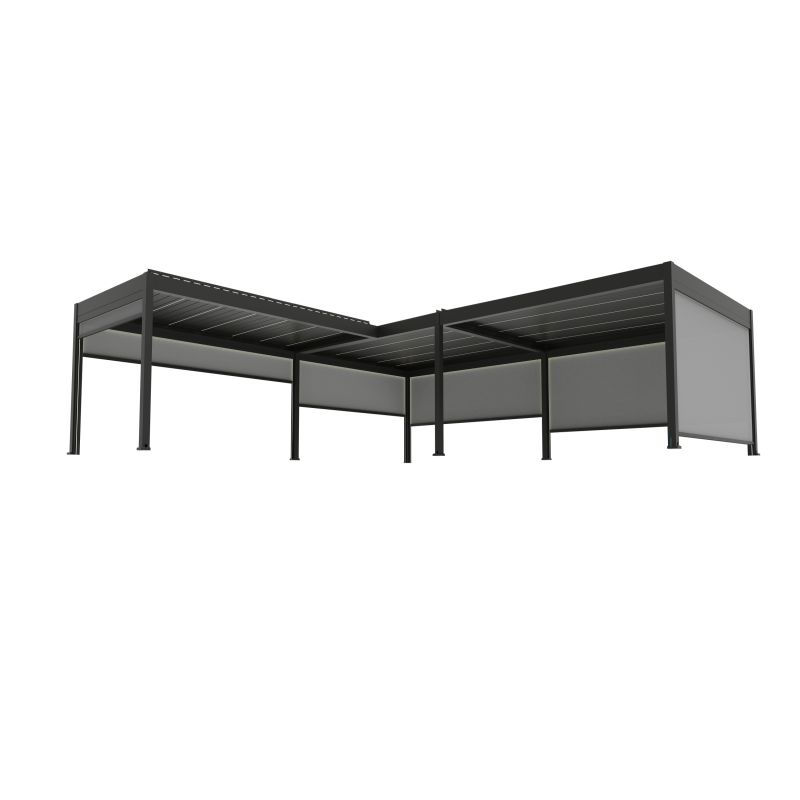

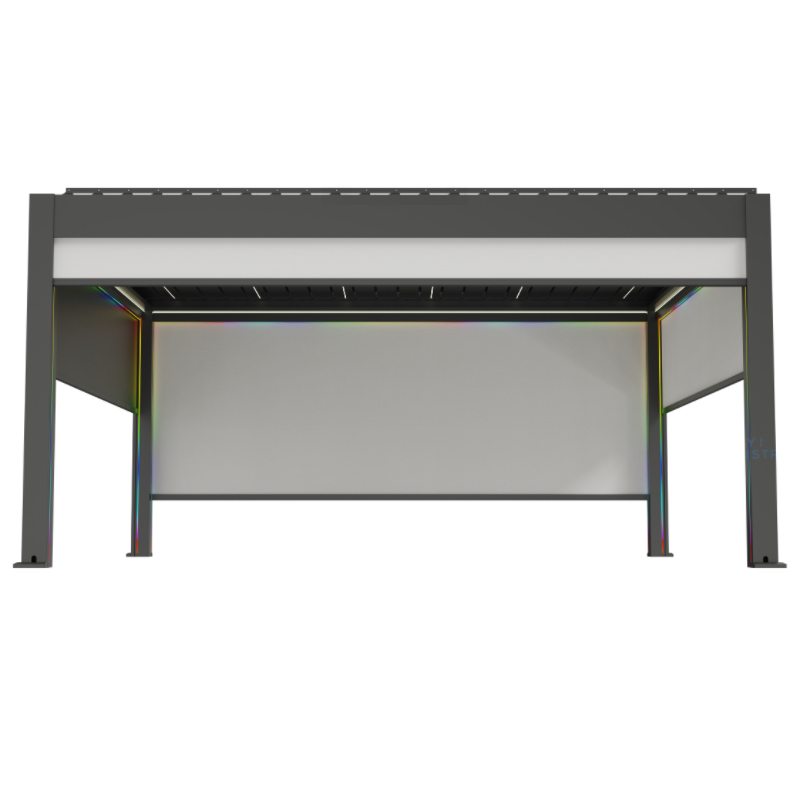

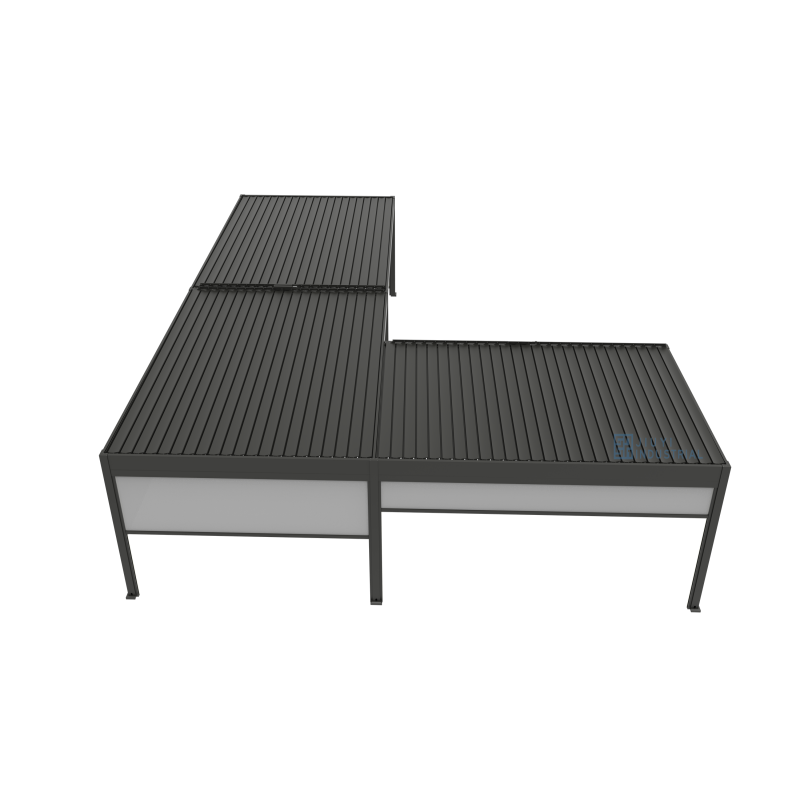

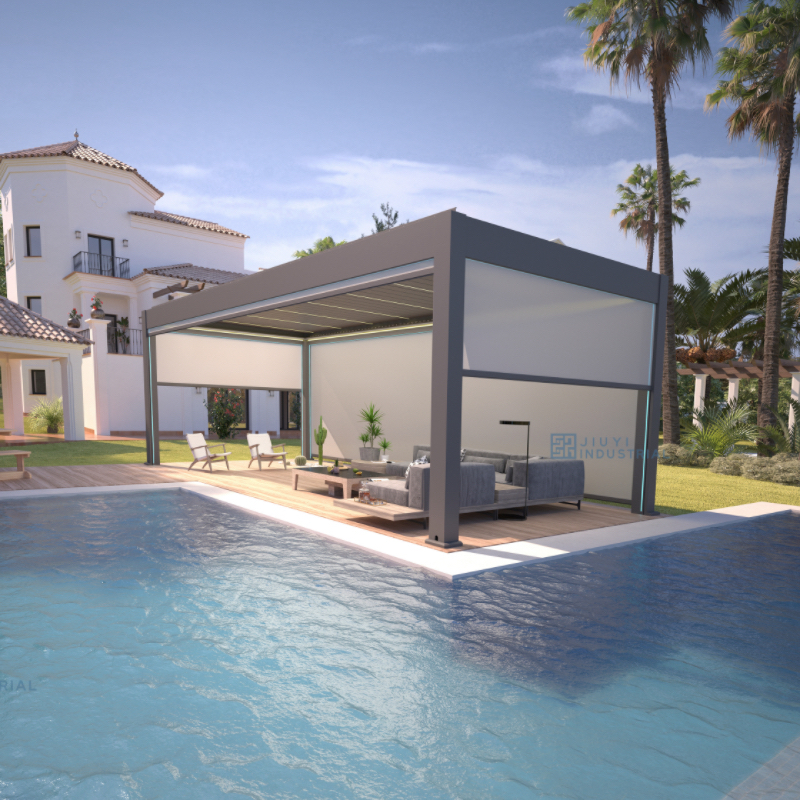

VH-350-260 Flipped Pergola with Integrated Screen

VH-350-260 Flipped Pergola with Integrated Screen

Beam: 350mm*187mm
Post: 200mm*200mm
Blade: 260mm*80mm
Max size: 5.5m*8m*3m
Product description: PU Foam-Filled Louvers | 100% Waterproof | Dual-Flow Drainage | Dual Motor & Dual-Axis Drive Built-in windproof screen with se

VH-350-260 Flipped Pergola with Integrated Screen
Max size: 5.5m*8m*3m
Maximum width in blade span direction 5.5m
Support customized sizes
Price bases on per Sqm
Aluminum frame colors: (dark gray, light gray, black, white, coffee color)

Post: 200*200mm, thickness 2.9mm
Beam: 350mm*187mm / thickness 2.7mm
Blade: 260mm*80mm / thickness 2mm
Tube: 65mm

Blade:with led light
Post: with RGB lighting
Beam:with RGB lighting
Sink: with led light

Support TUYA SMART WIFI Support Tuya smart wifi
Support 24V DC safety Voltage motor
