Outdoor windproof blinds

Splicable Motorized Windproof Blind

Cassette：100mm / 120mm / 140mm
Tube：70mm / 85mm

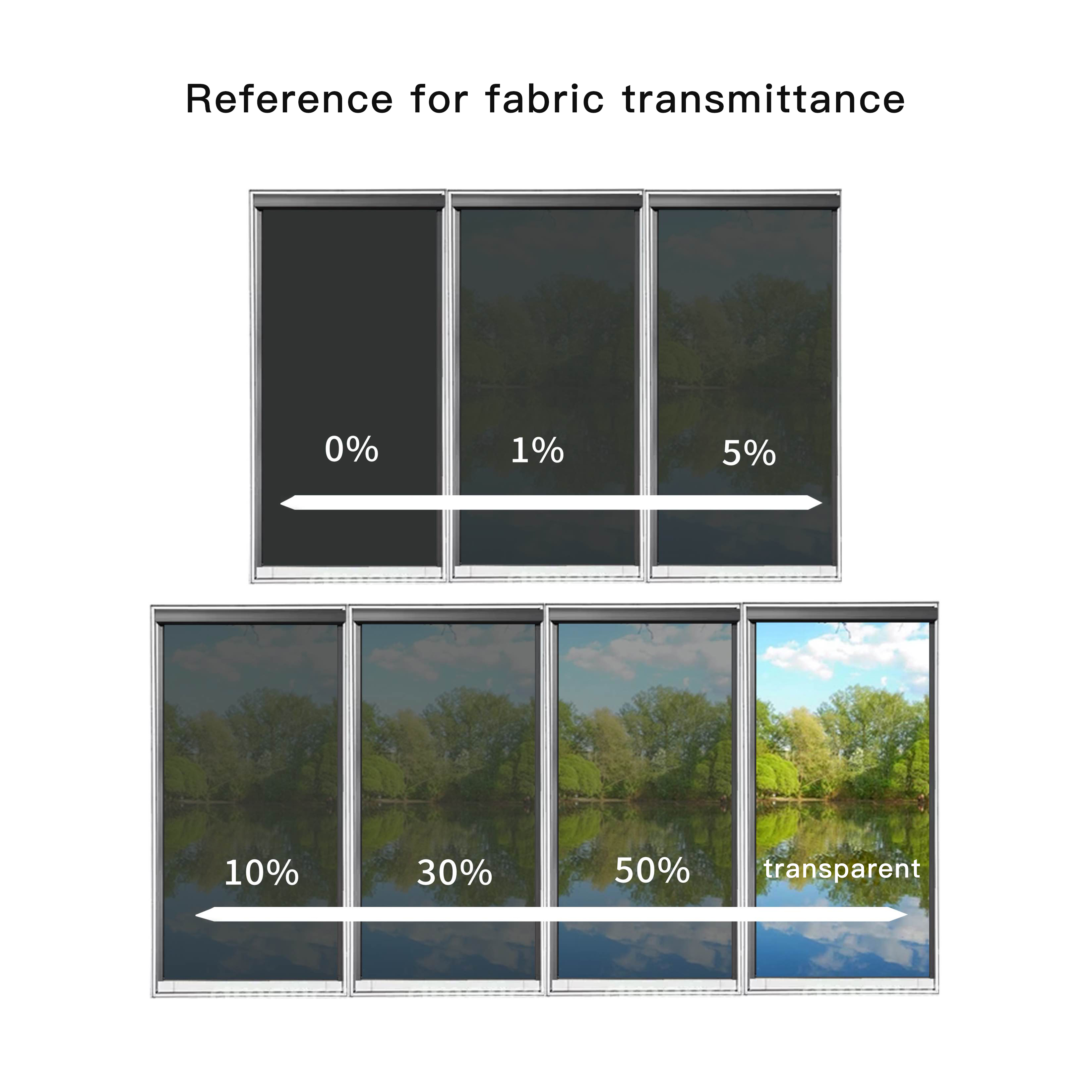

Fabric Openness Factor: 1% / 5% / 10%/ 20% / 30% / 40%
Max size: 15m*7m
Product description: V8 Ultra: 15-meter single-span windproof screen — one screen, no seams, maximum coverage.

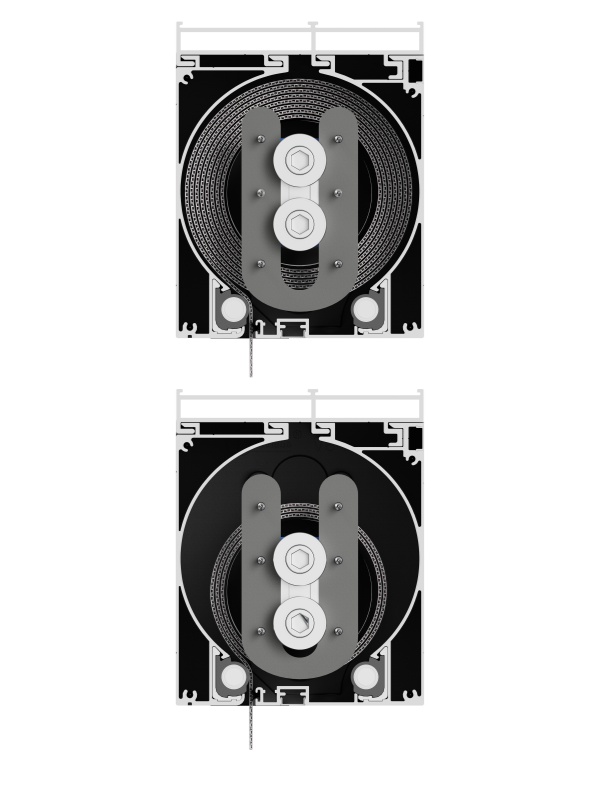

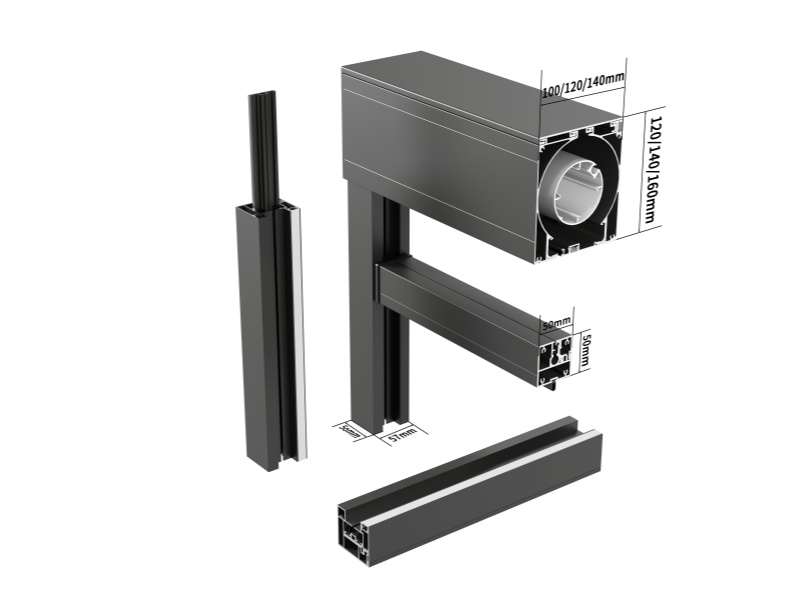

Cassette size : 100mm * 135mm, 120mm * 155mm， 140mm * 175mm
Tube Size : 70mm ，85mm

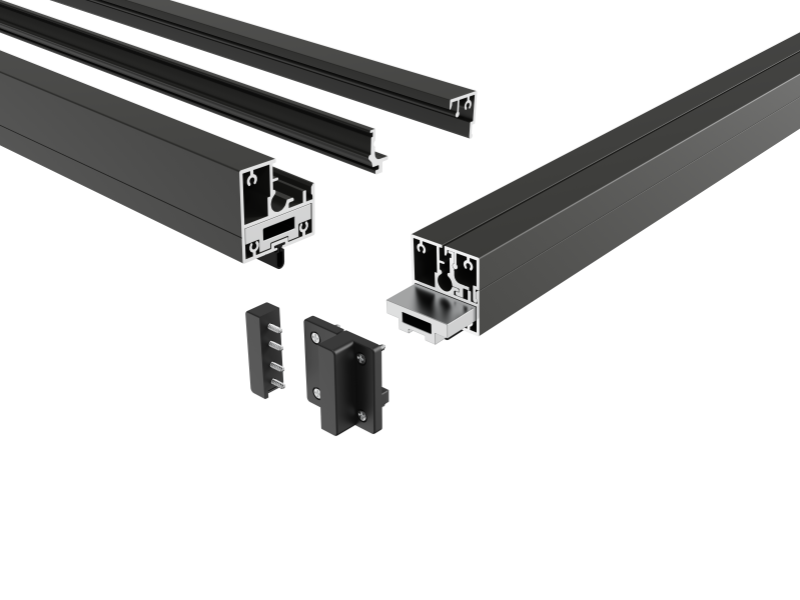

Side Rail : 60mm*57mm
Bottom Rail : 65mm*50mm
Splicing allows for extended dimensions up to 15m (W) × 7m (H).

Dimensions:
Width: 2000mm minimum - 15000mm maximum
Maximum Drop: 7000mm

Note: Different cassette and tube configurations are required depending on fabric thickness, which means maximum achievable dimensions vary accordingly.
